Applications of FRP Piling Sheets

At Novel Composites, our Fiberglass Reinforced Polymer (FRP) piling sheets are engineered for strength, durability, and superior performance in demanding environments. Whether for marine protection, infrastructure development, or industrial reinforcements, FRP piling sheets offer a lightweight, corrosion-resistant, and long-lasting alternative to traditional materials like steel and wood.

Where FRP Piling Sheets Excel

1. Marine & Coastal Protection

FRP piling sheets are ideal for waterfront and marine applications, offering unmatched corrosion resistance in seawater and harsh coastal environments.

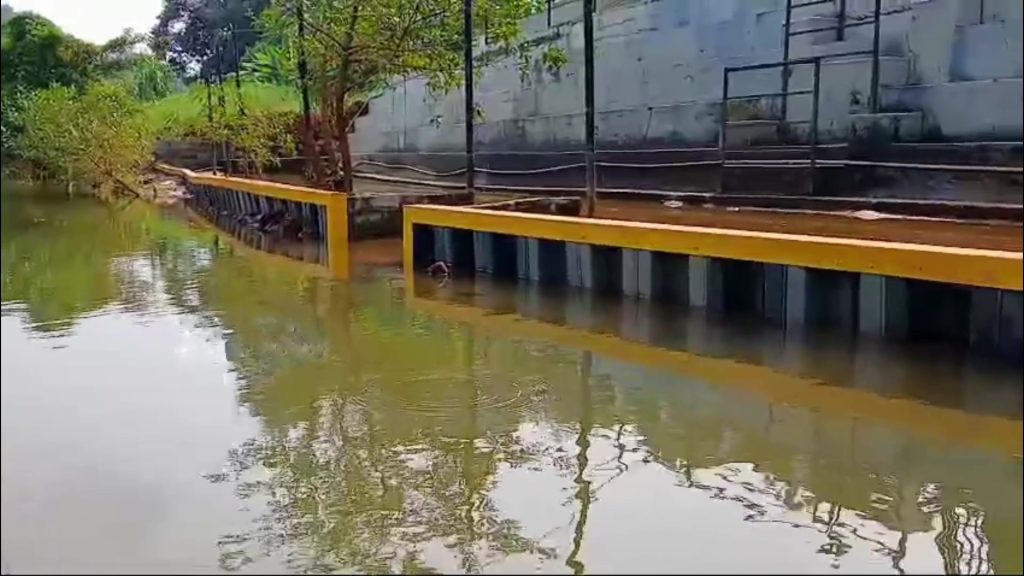

Seawalls & Bulkheads – Prevent shoreline erosion and protect coastal infrastructure.
Flood Barriers – Act as a durable and maintenance-free solution for flood-prone areas.
Docks & Piers – Withstand continuous water exposure without rusting or weakening.

2. Infrastructure & Construction

Engineered for foundation and structural applications, FRP piling sheets provide strength and longevity, reducing the need for frequent repairs.Retaining Walls – Offer a lightweight yet strong alternative to traditional materials.

Bridges & Tunnels – Used for reinforcement in high-moisture environments.
Roadway & Rail Embankments – Prevent soil erosion and ground shifting.

3. Industrial & Environmental Protection

FRP’s resistance to chemicals, moisture, and temperature fluctuations makes it an excellent choice for industrial and environmental projects.

Chemical Containment Areas – Protects against spills and leaks in chemical plants.
Wastewater Treatment Facilities – Maintains structural integrity in corrosive environments.
Landfills & Environmental Barriers – Acts as a non-toxic, eco-friendly containment solution.

4. Urban & Commercial Development

FRP piling sheets enhance modern construction with aesthetic appeal and long-term cost savings.

Building Foundations – Reinforce structures while reducing maintenance costs.
Underground Parking & Basements – Prevents water seepage and structural damage.
Waterfront Promenades & Landscaping – Customizable finishes make FRP an attractive choice for public spaces.

Why Choose FRP for Your Next Project?

Corrosion-Resistant & Long-Lasting – Outperforms steel and wood in harsh conditions.
Lightweight & Easy to Install – Reduces labor costs and speeds up construction.
Low Maintenance & Cost-Effective – No rusting, no painting, no frequent replacements.
Eco-Friendly & Non-Toxic – Sustainable alternative for modern infrastructure.

📞 Contact Novel Composites today to explore how FRP piling sheets can enhance your next project!

Property	Specification
Material
Base Material	Fiberglass Reinforced Polymer (FRP)
Resin Types	Polyester, Vinyl Ester, Epoxy
Fiberglass Content	30% to 70%
Dimensions
Length	4 meters to 12 meters (custom lengths available)
Width	300 mm to 600 mm (custom widths available)
Thickness	3 mm to 10 mm
Mechanical Properties
Tensile Strength	400 MPa to 1000 MPa
Compressive Strength	150 MPa to 300 MPa
Flexural Strength	400 MPa to 800 MPa
Modulus of Elasticity	20,000 MPa to 50,000 MPa
Weight
Density	1.6 g/cm³ to 2.0 g/cm³
Weight per Meter	5 to 15 kg
Environmental Resistance
Corrosion Resistance	Excellent
UV Resistance	UV-resistant coatings available
Temperature Resistance	-40°C to 70°C
Chemical Resistance	Chemical Resistance Resistant to acids, alkalis, and salts
Load-Bearing Capacity
Bearing Capacity	Engineered for substantial loads
Impact Resistance	Designed to absorb impacts efficiently
Fire Resistance	Limited (flame-retardant options available)
Surface Finish	Smooth or Textured
Color	Various colors, UV-protective paints available
Installation Features
Interlocking Design	Available
Ease of Handling	Lightweight for easy handling and installation
Durability
Lifespan	Exceeding 50 years
Resistance to Biological Damage	Resistant to rot, mold, and termites
Compliance & Standards	Designed and manufactured according to ASTM/ISO standards
Cost	Higher initial cost, significant long-term savings
